Vantec M.2 PCIe Gen3x2 B+M Key To 5 Ports SATA III Expansion Card
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| External Interfaces | SATA III |
| Expansion Ports | M.2 PCIe Gen3x2 B+M Key |
| MPN | UGT-M2670 |
| Item Length | 3.15" |
| Brand | Vantec |
| Type | Expansion Card |
| Number Of Ports | 5 Ports |
| Manufacturer Warranty | 1 Year |
| Item Height | 0.36" |
| Model | UGT-M2670 |
| Country/Region Of Manufacture | Taiwan |
| Item Width | 0.78 |

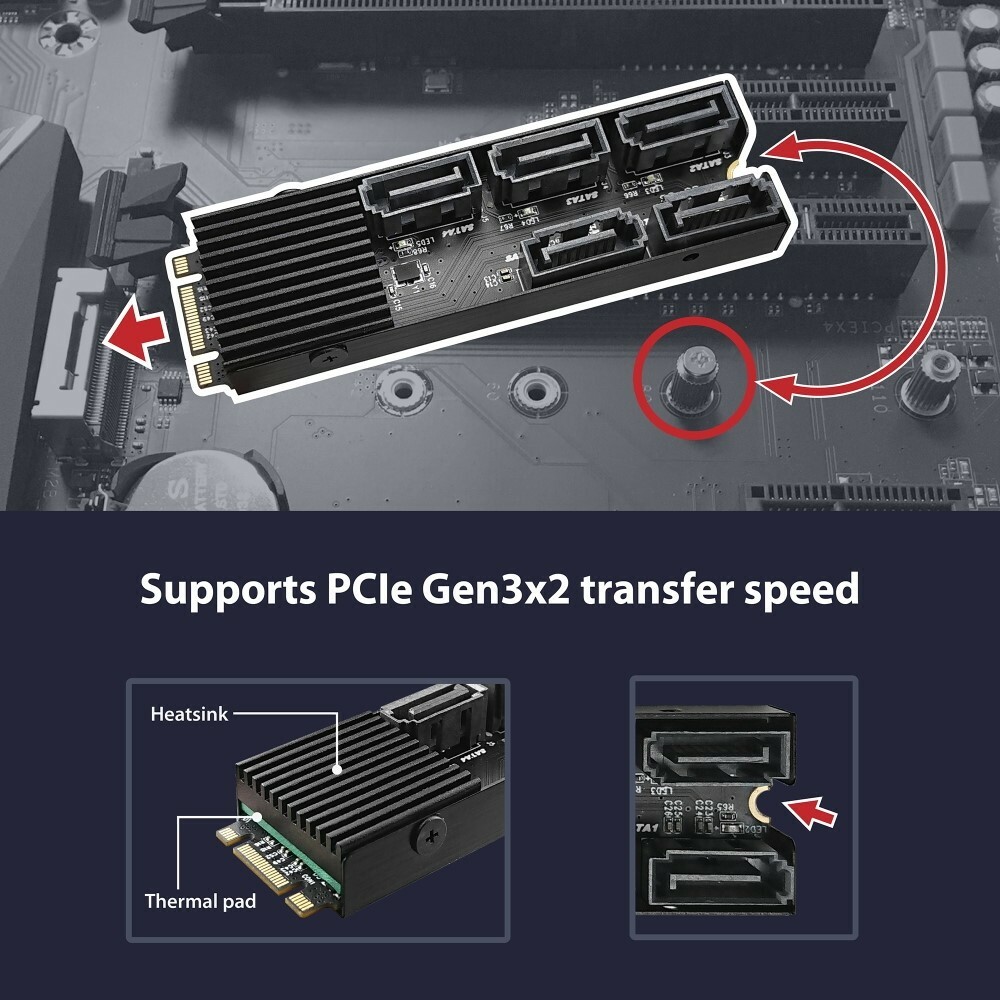

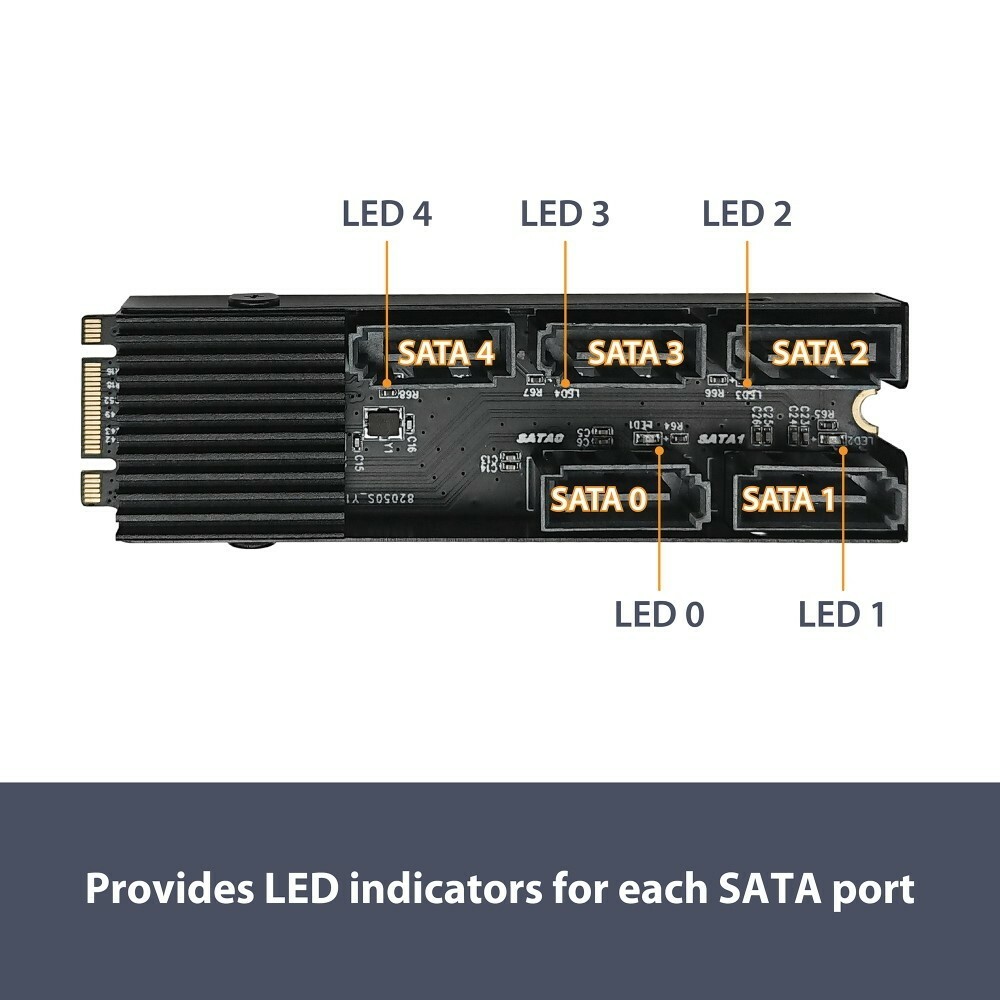

Vantec M.2 PCIe Gen3x2 B+M Key To 5 Ports SATA III Expansion Card This M.2 PCIe Gen3x2 B+M Key to 5 ports SATA III Expansion Card is designed to use the M.2 NVMe slot on the motherboard to connect 5 SATA devices. It uses PCIe v3.0 with 2 lanes (B+M Key) to link to the 5 SATA devices. This will allow for even greater number of SATA III devices to be connected. It is Plug and Play, no additional software or drivers are required when using Windows 10/11. It is design to support SATA SSD or HDD for fast data transfer and clear LEDs indicators for each SATA port for disk activity. The Core chipset JMB585 manage the 5 SATA port with port multiplier and multiple commands for simultaneous sending/receiving data both in AHCI and legacy IDE mode. It also support TRIM to SSD and is able perform at a theoretical speed of 6Gbps. Provide 5 SATA ports via M.2 PCIeSupports PCIe Gen3x2 transfer speedSupports SATA III 6Gbps transfer speed (Backward compatible with SATA II/I)Supports SATA plug and play functionProvides LED indicators for each SATA port Specifications: Model: UGT-M2670 M.2 interface: M.2 NVMe (PCI Express 3.0x2) Device Connectors: Five SATA III (6Gbps) ports Power Supply: M.2 interface powered, no external power needed Item Dimensions (LxWxH): 3.18 x 1.00 x 0.42 inches / 80.8 x 25.4 x 10.6 mm Item Weight: 0.81 oz. / 23 g OS Support: Windows 11, 10 (32bit or 64bit); Linux OS with Latest Kernel Package Dimensions (LxWxH): 5.43 x 2.36 x 0.94 inches / 138 x 60 x 24 mm Package Weight: 1.62 oz / 46 g Environmental:Operating Temperature: 0 ℃ to +45℃Operating Humidity: 10% to 85 % RH (no condensation)Storage Temperature: -10℃ to +70℃Storage Humidity: 5% to 90% RH (no condensation) System Requirements: M.2 NVMe interface on motherboardNewer OS (Windows 11/10)Preferredm, but not required, motherboard with newer core chipsetNOTE: Will work on motherboard with M.2 NVME, will not work with M.2 SATA What's included: 1 x M.2 PCIe Gen3x2 B+M Key to 5 ports SATA III Expansion Card, 1 x Quick Install Guide
