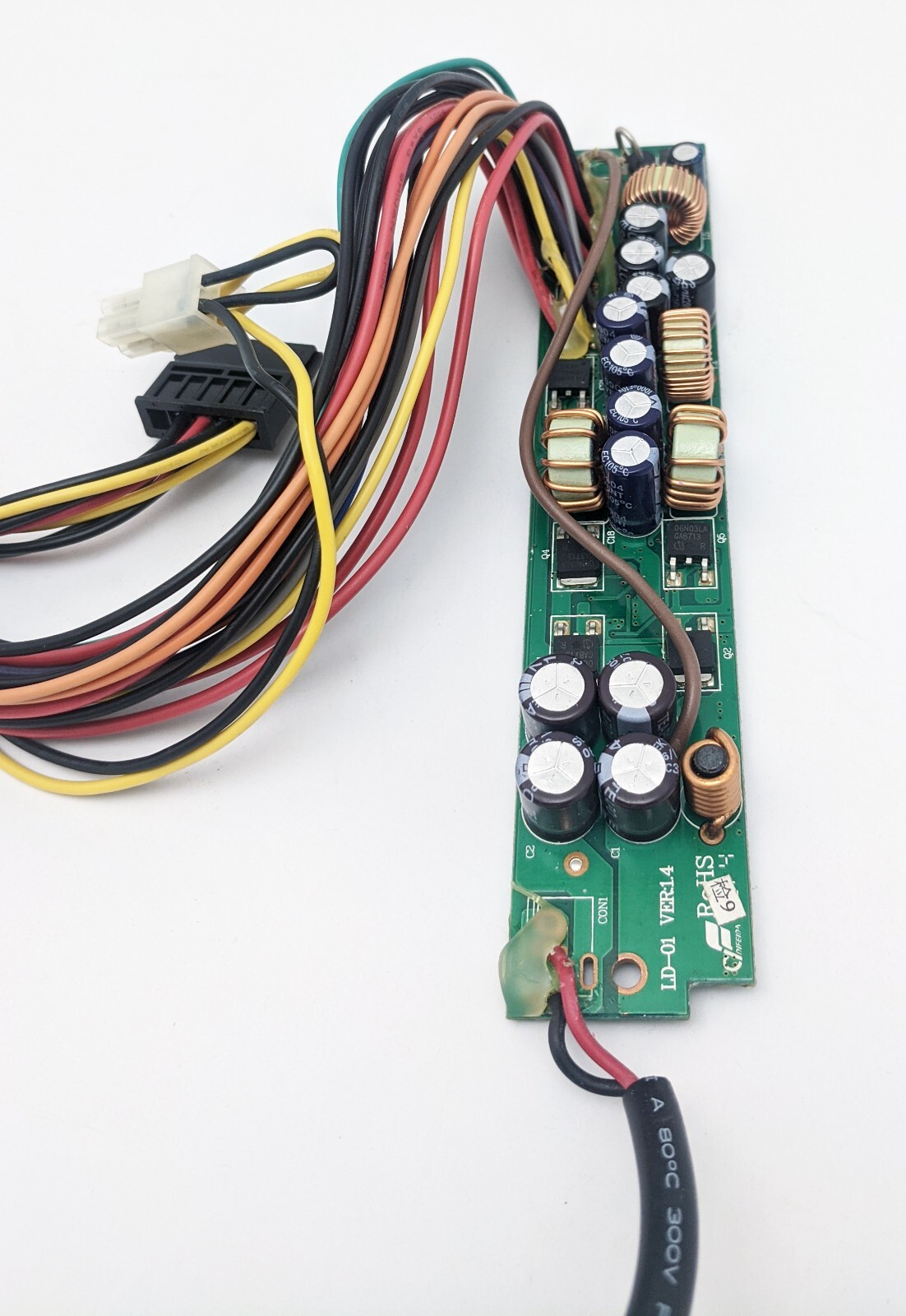

65W DC 12V to ATX P4 Power Supply PCB Module Adapter/Converter PC Mini ITX Board
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Voltage Compatibility | 12 V |
| Connectors | 20+4 Pin |
| Brand | Linkworld |
| Form Factor | Mini-ITX |
| Type | Power Module |
| Maximum Power | 65 W |
| Unit Type | Unit |
| Maximum Wattage | 65w |
| Cooling | Passive Cooling |
| Model | LPDD-01 |
| MPN | Book Size Computer PSU |

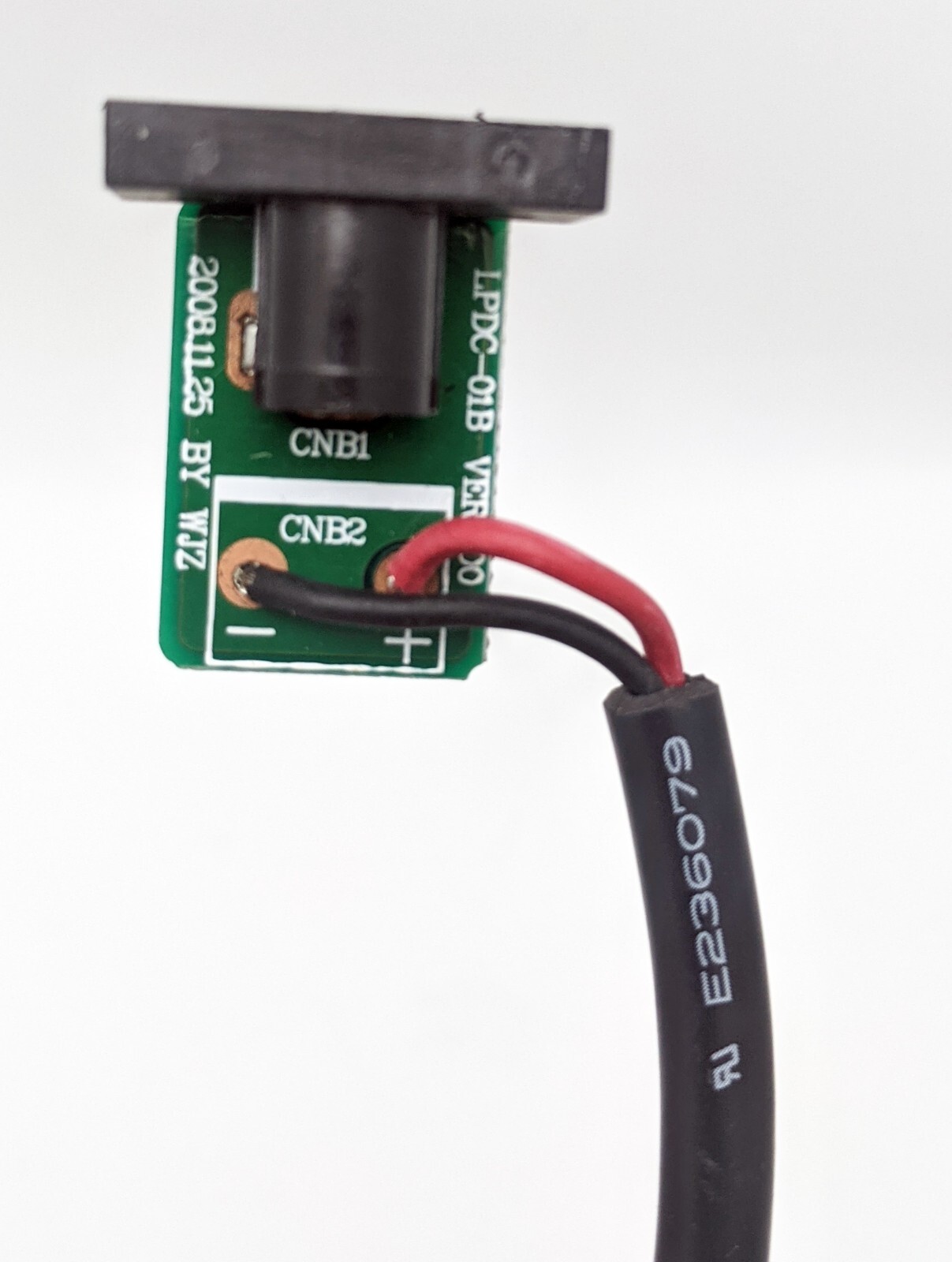

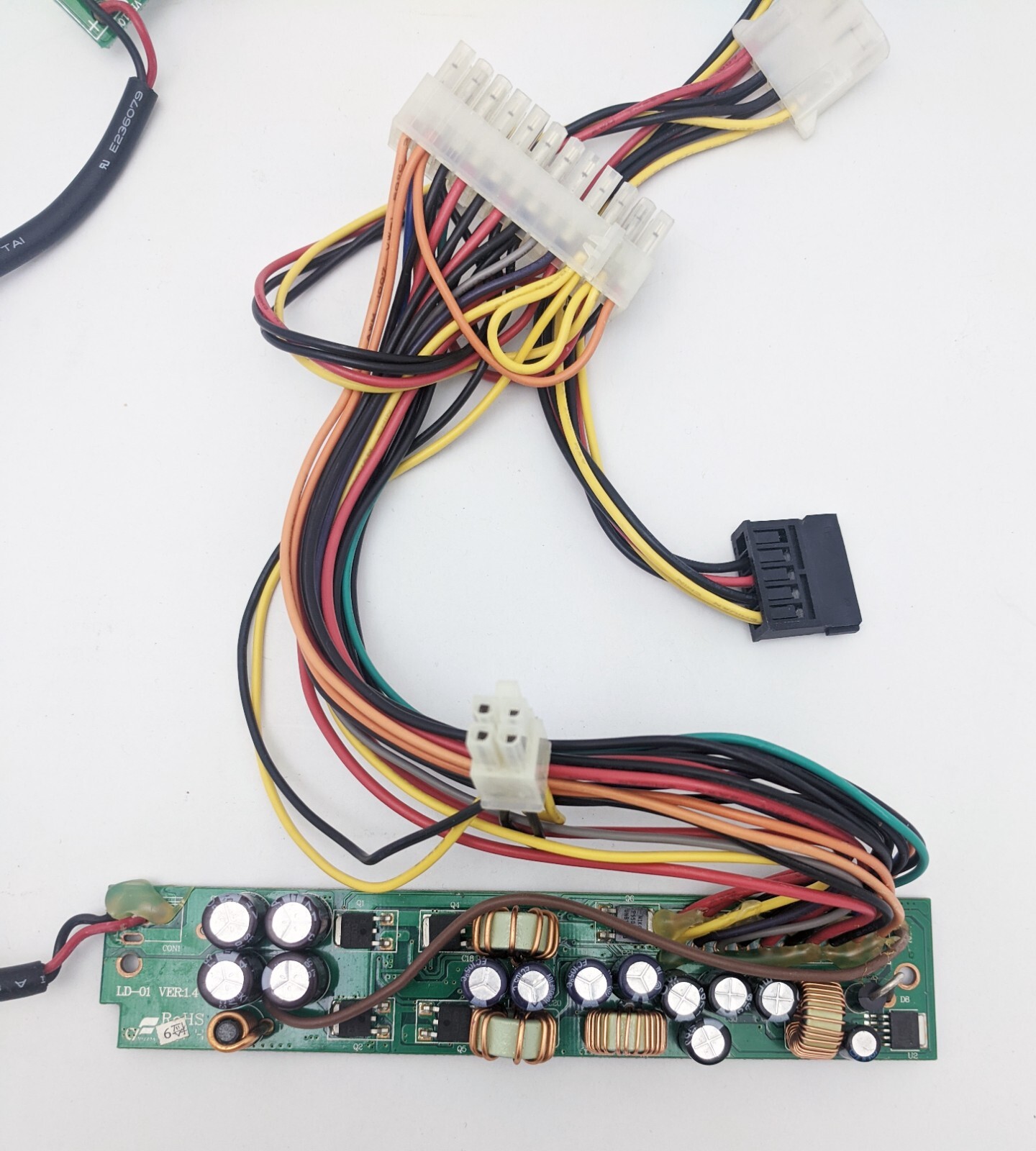

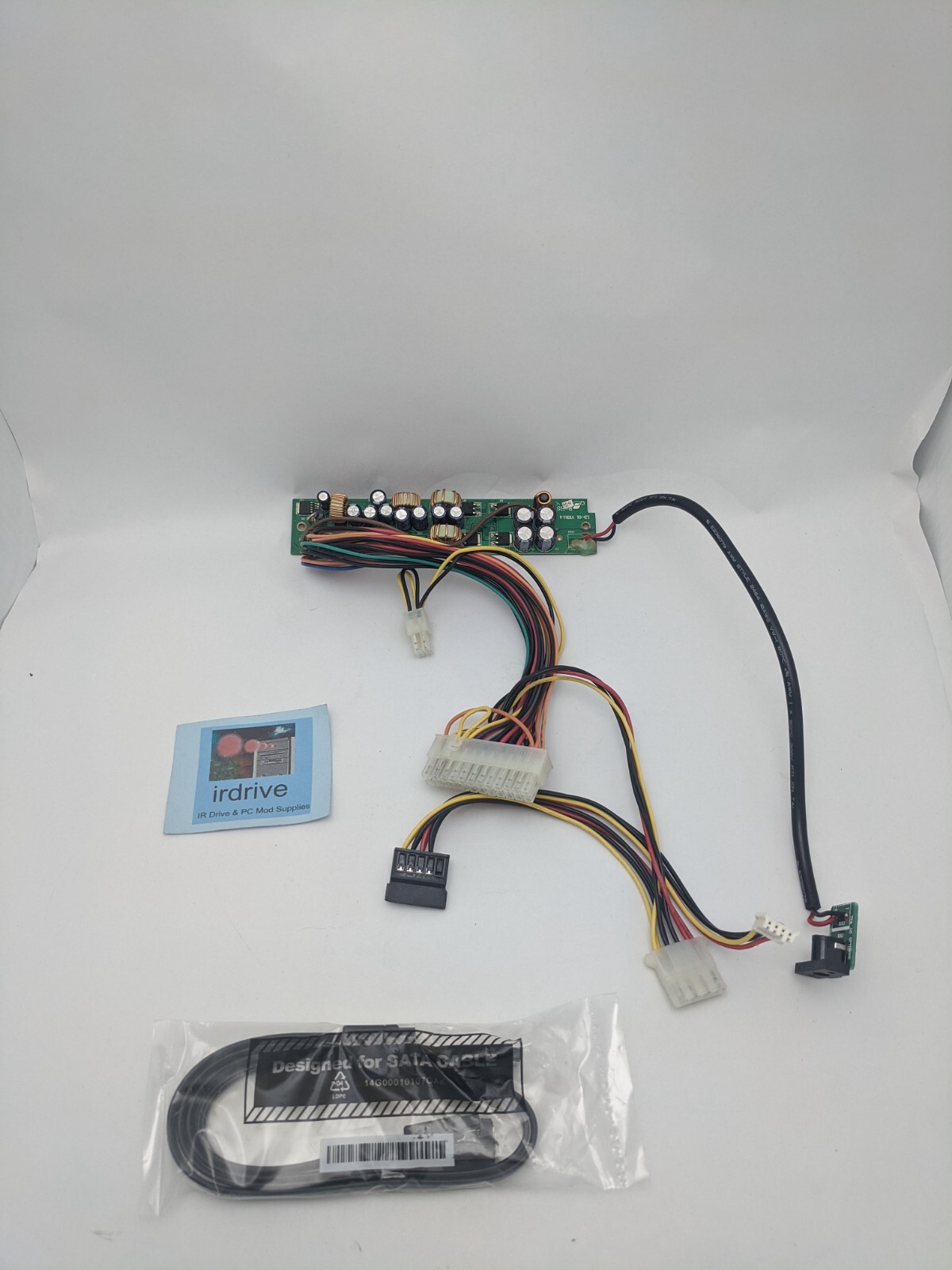

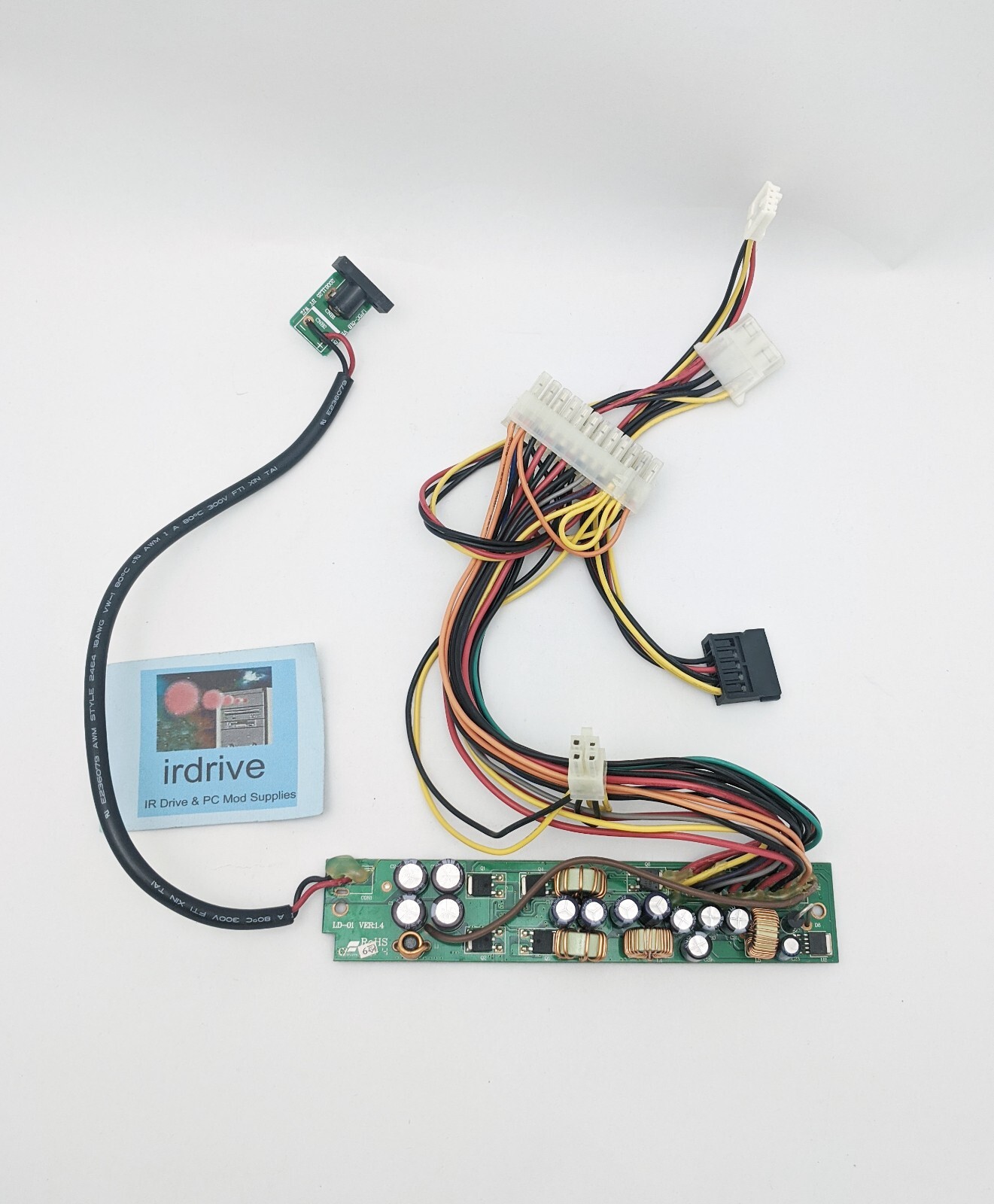

We are located in Southern California. We ship daily except Saturdays, Sundays, and national holidays. Your package will be shipped with a tracking number. NEW True-Continuous 65W 12V DC to ATX Power Supply Converter for Mini ITX PC Case Last photo show distance between the screw holes. DC-DC ATX converter was designed from ground up to fit small form factor ATX boards, allowing enclosure designers to save space while not compromising power requirements.. Total True Continuous Wattage: 65W (Tested to work with Intel Desktop Board with Intel Dual-Core ATOM Processor such as D525MW, D2500HN, as well as other mini ITX CPU/motherboard combo made by Foxconn and others ) Input: DC IN - 5.5mm/2.5mm Jack (compatible with HIGH POWER® HPA-601250U3 REV: C0-A34 AC power adapter) Connectors: 1x 20+4 ATX Connector (Support 20pin / 24pin) 1x 4-pin ATX12v Power Connector 1x Serial ATA Power Connector 1x PATA Power Connector 1x FDD Power Connector Output: DC voltage regulation Parameter Range Min Nom. Max Unit +3.3V +5V +12V -12V +5VSB ±5% ±5% ±5% ±10% ±5% +3.14 +4.75 +11.4 -10.8 +4.75 +3.3 +5 +12 -12 +5 +3.47 +5.25 +12.6 -13.2 +5.25 Volts Volts Volts Volts Volts Load ranges Total DC Output Power: 65W Parameter Min Max Peak Unit +3.3V 0.3 5A Amps +5V 0.5 5A Amps +12V 0.5 3A Amps -12V 0.0 0.2 Amps +5VSB 0.0 1.5 2.0 Amps Notes: The 65W Power Supply maximum continuous average DC output power shall not exceed 65W. The 65W Power Supply maximum continuous average load on +5V and +3.3V outputs shall not exceed 30W PROTECTION Over-power protection The power supply will be shutdown and latch off when output power over 150% of rated DC output. Short circuit The power supply shall shutdown and latch off for shorting +3.3V,+5V,-5V,+12V,-12V rails. The main output short circuit of any impedance shall less than 0.1 ohms. The maximum short circuit current in any output shall not exceed 40VA. 5Vsb will auto-recovery when the fault removed. No load operation No damage or hazardous will occur with any output disconnected from load. ENVIRONMENT Operation Temperature 0 to 50℃ Relative Humidity 10 to 90%,non-condensing Shipping and Storage Temperature -20 to 70℃ Relative Humidity 5 to 95%,non-condensing Altitude Operating 10,000FT max Storage 50,000FT max PCB Dimensions: LENGTH: 156mm WIDTH: 30mm HEIGHT: 1.6mm Check out this 90w Modular Board Check out this Power Adapter that works with this DC Board Customer Feedback on this power cord: Great product + happy buyer = Awesome seller! ***** Buyer rubble_fanger( 360)Mar-03-16 Store Policy & About us (More on Shipping/ Return Policy / None-USA International Customers)
